Dual Plate Check Valves Manufacturer

Stainless Steel Dual Plate Check Valve Manufacturers, Carbon Steel Dual Plate Check Valve Suppliers, Alloy Steel Dual Plate Check Valve Exporters, Brass Dual Plate Check Valve Providers

Industrial Dual Plate Check Valves Manufacturer & Suppliers in India

Dual Plate Check valves which basically are of five types, have various mechanical applications. ACE ALLOYS LLP is an illustrious Dual Plate Check valves Manufacturer & Supplier of various sizes and grades. Our Dual Plate Check valves uses are countless for which they have considerable customer demand. Hence we always ensure to maintain large quantities of dual plate check valves stock.

Dual Plate Check Valves
Dual Plate Check Valves

We manufacture all the dual plate check valves types using raw material of superior quality. Wafer dual plate check valves are generally bolted around outside, and are clamped between two flanges. On the other hand the bolting of Lug Dual Plate Check Valves passes through their body. The installation process of Flange Type Dual Plate Check Valves is same as that of studs and nuts.

Depending upon Dual Plate Check Valves Specification, we design them with precise dimensions. The metal used for the fabrication of our products is lent from renowned and honest vendors.

Our Stainless Steel Dual Plate Check Valves can retain their toughness even in elevated temperatures. They can also withstand against various types of hazardous corrosions. Our Alloy Steel Dual Plate Check Valves and Aluminium Dual Plate Check Valves are deployed in various industries for their elegance. For the distinguished properties of our brass dual plate check valves and bronze dual plate check valves, they are exported to many other countries.

We offer high quality goods in affordable prices. To know about all of our products, do visit our official web page. Our contact information is also available in our web site. Place your order right now.

Wafer Dual Plate Check Valves, Lug Dual Plate Check Valves, Flange Type Dual Plate Check Valves Dealer & Wholesaler

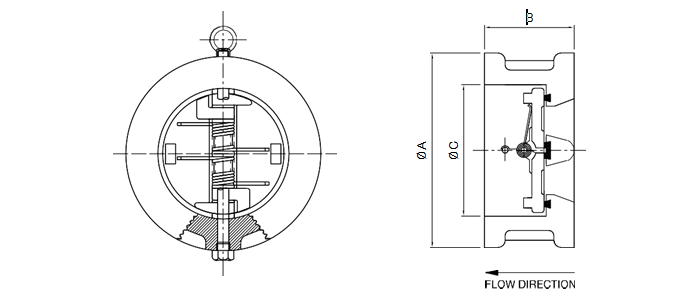

Dimensions of ANSI/ASME B16.10 Dual Plate Check Valves

Dimensions of Dual Plate Check Valves

Dual Plate Check Valves
SIZE N.B. ANSI RATING DIMENSIONS (mm)
** A B C
50mm (2”) 125 101 54 60
150 101 60 60
300 107 60 60
600 107 60 60
900 140 70 47
1500 140 70 47
65mm (2.5”) 125 120 54 73
150 120 67 73
300 127 67 73
600 127 67 73
900 162 83 57
1500 162 83 57
80mm (3”) 125 133 57 89
150 133 73 89
300 145 73 89
600 145 73 89
900 165 83 73
1500 171 83 73
100mm (4”) 125 171 64 144
150 171 7 3 11 4
300 177 73 114
600 190 79 114
900 203 102 98
1500 206 102 98
125mm (5”) 125 193 70 141
150 193 86 141
300 212 86 141
600 238 105 141
900 244 159 120
1500 251 159 120
150mm (6”) 125 218 76 168
150 218 98 168
300 247 98 168
600 263 137 168
900 285 159 146
1500 279 159 146
200mm (8”) 125 276 95 219
150 276 127 219
300 304 127 219
600 317 165 219
900 355 206 190
1500 350 206 190
250mm (10”) 125 336 108 273
150 336 146 273
300 358 146 273
600 396 213 273
900 431 241 238
1500 431 248 222
300mm (12”) 125 406 143 324
150 406 181 324
300 419 181 324
600 453 229 324
900 495 292 282
1500 518 305 263

Types of ANSI/ASME B16.10 Dual Plate Check Valves

  • Dual Plate Check valves Manufacturer
  • Dual Plate Check valves Supplier
  • Dual Plate Check valves Stock
  • Stainless Steel Dual Plate Check Valves
  • Alloy Steel Dual Plate Check Valves
  • Aluminium Dual Plate Check Valves
  • Brass Dual Plate Check Valves
  • Bronze Dual Plate Check Valves
  • Carbon Steel Dual Plate Check Valves
  • Martensitic Steels Dual Plate Check Valves
  • Austenitic Stainless Steel Dual Plate Check Valves
  • Duplex Stainless Steels Dual Plate Check Valve
  • Nickel Alloys Dual Plate Check Valve
  • Nickel Aluminum Bronze Dual Plate Check Valve
  • Hastelloy Dual Plate Check Valves
  • Inconel Dual Plate Check Valves
  • Titanium Alloy Steel Dual Plate Check Valves
  • Wafer Type Dual Plate Check Valve
  • Solid Lug Type Dual Plate Check Valve
  • Double Flange type Dual Plate Check Valves
  • Hub End type Dual Plate Check Valves
  • Butt weld end type Dual Plate Check Valves
  • Low Temperature Carbon Steel Dual Plate Check Valves
  • Super Duplex Stainless Steels Dual Plate Check Valve

For Dual Plate Check Valves price list as on :

Request the latest Dual Plate Check Valves Price List. Use the contact button below for Dual Plate Check Valves Ready stock information and updated price list.

Call +91-22-6743 7444 / +91-22-6743 8222 OR

Email us at info@acealloysllp.com for quick response

SEND US YOUR REQUIREMENT

Other Material Grades of ANSI/ASME B16.10 Dual Plate Check Valves

DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
Carbon Steel K30504 A105 A216 WCB A105
Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
High Yield Steel K03014 A694 F60 - A694 F60
3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
5 Chrome, 1/2 Moly K41545 A182 F5 A217 C5 A182 F5
1 1/4 Chrome, 1/2 Moly K11597 A182 F11 A217 WC6 A182 F11
2 1/4 Chrome, 1 Moly K21590 A182 F22 A217 WC9 A182 F22
9 Chrome, 1 Moly K90941 A182 F9 A217 WC6 A182 F9
13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
304 S30400 A182 F304 A351 CF8 A276 or A479 304
304L S30403 A182 F304L A351 CF3 A276 or A479 304L
316 S31600 A182 F316 A351 CF8M A276 or A479 316
316L S31603 A182 F316L A351 CF3M A276 or A479 316L
317L S31703 A182 F317L A351 CG8M A276 or A479 317L
321 S32100 A182 F321 - A276 or A479 321
347 S34700 A182 F347 A351 CF8C A276 or A479 347
17-4PH S17400 A564 630 - -
Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
Alloy K500 N05500 - - B865 N05500
Alloy 800 N08800 B564 N08810 - B408 N08800
Alloy 825 N08825 - - B425 N08825
Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
Alloy C N10002 - A494 CW6M -
Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276
22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
904L N08904 B625 N08904 - B649 N08904
Titanium R50400 B381 F2 B367 C2 B348 Gr 2

ANSI/ASME B16.10 Dual Plate Check Valves Application

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry
