Industrial High Pressure Globe Valves Manufacturer & Suppliers in India

ACE ALLOYS LLP is one of the major manufacturers, suppliers and stockholders of globe valve. Our industrial Globe Valves are linear motion valves which are round in shape. They have highly efficient throttling ability for high-pressure systems. Globe valves can be used in systems that work with wide range of temperature extremes or require frequent stroking, vacuum etc.

Globe Valves Supplier
Globe Valves

These globe valves find its efficient use for on-off service. However, it is also suited for frequent cycling and control of fluids at any point between the open and closed positions. The globe valve is found in mainly three designs- angle design, Y-shaped, and Z- shaped. Globe valves are comes in different types which include Flanged End Globe Valve, Screwed End Globe Valve, Butt Weld End Globe Valve, Socket Weld End Globe Valve and more.

Globe Valves Specification:

Depending on Globe valve construction material, it can work within temperature range of - 425°F to 1100°F. The materials may be Steel Globe Valve, Alloy Steel Globe Valves, Aluminium Globe Valves, Brass Globe Valves, and Bronze Globe Valves. Our Globe Valves are available in various sizes from .5 to .48 inches and for hand-operated manual valves they weigh up to 13,000lbs. Globe valves can handle pressure limits from 1480 to 1500psi which is dependent on the material of construction, size, and temperature.

We, at Ace Alloys LLP, make sure to provide the best material according to the client’s specification. Our company is well equipped with all kinds of resources for successfully meeting the demand of its products. Contact us today to get the best value price for globe valves.

Bolted Bonnet Globe Valves Dealer, Pressure Seal Globe Valves Stockist, Bellows Seal Globe Valves Dealer in India

ANSI/ASME B16.10 Globe Valves Specifications:

Type Bolted Bonnet O.S. & Y Type Rising Stem
Size 15mm to 1000 mm
Pressure Rating ASA 125#, 150#, 300#, 600#, 900#, 1500#, 2500#, PN 16, PN 40, PN 64
Design & Mfg. Standard BS-1873, ND-16, ND-40
Inspection & Testing Standard API 598 / BS 6755 Part-1
Body Material CS, SS, AS, WCB, LCB, WC6, WC9, Cast Iron, CF8, CF8M, Alloy 20
Trim Materials 13% Cr. Stellited, AISI 304/316/Monel
End Connection Screwed to BSP, BSPT, NPT, Socket Weld, Flanged Ends, Ring Type Joint(RTJ), Butt Welded as per ANSI B 16.5 / B 16.25
Face to Face Dimension ANSI B 16.10
Operation Manual, Gear and Electrical Actuated

Dimensions of ANSI/ASME B16.10 Globe Valve

Parameter Standard
Design Gate Valves ASME B16.34 API 600
Globe Valves API 623
Check Valves API 594
Ends Face-to-face/ End-to-end Dimensions ASME B16.10
End Flange Dimensions ASME B16.5/ 16.47
Butt-weld End Dimensions ASME B16.25
Forged Fittings, Socket welding & Threading Dimensions ASME B16.11

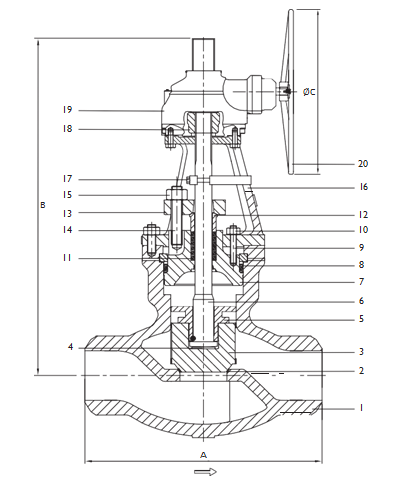

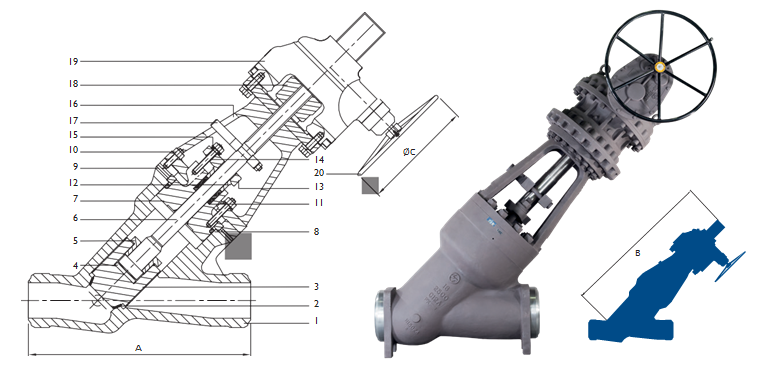

Globe Valves - T Pattern - Dimensions & Weights
Size Class 600 Class 900 Class 1500 Class 2500
NPS DN A B C Wt. A B C Wt. A B C Wt. A B C Wt.
2 50 292 425 228 40 216 575 406 65 216 550 406 85 279 750 508 155
3 80 356 540 305 65 305 590 406 75 305 690 500 170 368 712 486 240
4 100 432 610 457 165 356 675 630 130 406 710 630 280 457 800 710 340
6 150 559 805 710 270 508 795 710 350 559 920 900 530 610 1200 900 815
8 200 660 1135 900 645 660 1020 900 640 711 1280 710 915 762 1450 900 1400
10 250 914 1690 900 2150
16 400 1397 2435 1000 5555
18 450 1397 2645 1000 6900
Globe Valves - Y Pattern- Dimensions & Weights
Size Class 900 Class 1500 Class 2500
NPS DN A B C Wt. A B C Wt. A B C Wt.
2 50 368 620 406 60 368 620 406 60 451 620 406 110
3 80 381 630 508 80 470 710 400 110 578 875 630 185
4 100 457 865 500 170 546 875 630 170 673 920 710 330
6 150 610 1290 630 270 705 1200 900 410 914 1460 750 990
8 200 737 1710 710 610 832 1580 710 780 1022 1890 610 1900
10 250 838 1900 1000 830 991 1890 800 1375 1270 1960 900 2100
12 300 965 2080 1000 1300 1130 2040 900 2250 1041 2720 1000 3000
14 350 1029 2350 900 1550 1257 2390 1000 2570 1118 2760 710 4200
18 450 1219 2730 710 2800 1537 2900 1000 3500 1537 3020 1000 7150
All dimensions in mm and weights in kg

Types of ANSI/ASME B16.10 Globe Valves

  • Globe Valves Supplier
  • Globe Valves Manufacturer
  • Globe Valves Stock
  • Industrial Globe Valves
  • Flanged End Globe Valve
  • Screwed End Globe Valve
  • Butt Weld End Globe Valve
  • Socket Weld End Globe Valve
  • Steel Globe Valves
  • Alloy Steel Globe Valves
  • Aluminium Globe Valves
  • Brass Globe Valves
  • Bronze Globe Valves
  • Bolted Bonnet Globe Valves
  • Pressure seal Globe Valves
  • Martensitic Steels Globe Valves
  • Low Temperature Carbon Steel Globe Valves
  • Austenitic Stainless Steel Globe Valves
  • Duplex Stainless Steels Globe Valve
  • Super Duplex Stainless Steels Globe Valve
  • Nickel Aluminum Bronze Globe Valve
  • Titanium Alloy Steel Globe Valves
  • Bellows Seal Globe Valves

For Globe Valves price list as on :

Request the latest Globe Valves Price List. Use the contact button below for Globe Valves Ready stock information and updated price list.

Other Material Grades of ANSI/ASME B16.10 Globe Valves

DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
Carbon Steel K30504 A105 A216 WCB A105
Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
High Yield Steel K03014 A694 F60 - A694 F60
3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
5 Chrome, 1/2 Moly K41545 A182 F5 A217 C5 A182 F5
1 1/4 Chrome, 1/2 Moly K11597 A182 F11 A217 WC6 A182 F11
2 1/4 Chrome, 1 Moly K21590 A182 F22 A217 WC9 A182 F22
9 Chrome, 1 Moly K90941 A182 F9 A217 WC6 A182 F9
13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
304 S30400 A182 F304 A351 CF8 A276 or A479 304
304L S30403 A182 F304L A351 CF3 A276 or A479 304L
316 S31600 A182 F316 A351 CF8M A276 or A479 316
316L S31603 A182 F316L A351 CF3M A276 or A479 316L
317L S31703 A182 F317L A351 CG8M A276 or A479 317L
321 S32100 A182 F321 - A276 or A479 321
347 S34700 A182 F347 A351 CF8C A276 or A479 347
17-4PH S17400 A564 630 - -
Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
Alloy K500 N05500 - - B865 N05500
Alloy 800 N08800 B564 N08810 - B408 N08800
Alloy 825 N08825 - - B425 N08825
Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
Alloy C N10002 - A494 CW6M -
Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276
22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
904L N08904 B625 N08904 - B649 N08904
Titanium R50400 B381 F2 B367 C2 B348 Gr 2

ANSI/ASME B16.10 Globe Valves Application

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

ANSI/ASME B16.10 Globe Valves Manufacturer & Supplier
