Valves

Steel Valves

ACE ALLOYS LLP is a skilled manufacturing house for Steel Valves, which are an excellent choice for most end cap applications. Their flexible nature allows them to go on easily and stay put while the soft material cushions the end of the bar or tube.

Stainless Steel Valves offered by ACE ALLOYS is used in pipe systems to connect straight pipe or tubing sections, adapt to different sizes or shapes and for other purposes, such as regulating (or measuring) fluid flow. High quality pipe protection caps which can also be used as end caps for the packaging industry in a variety of sizes and depths.

Carbon Steel Valves can be made in any colour LDPE to suit the application unless otherwise stated, where other sizes may also be available. It requires money, time, materials and tools to install, and are an important part of piping and plumbing systems.

Duplex Steel Valves offered by ACE ALLOYS is generally used to describe the conveyance of water, gas, or liquid waste in domestic or commercial environments; "piping" is often used to describe the high - performance (high - pressure, high - flow, high - temperature or hazardous - material) conveyance of fluids in specialized applications.

All valves are designed with ergonomic tabs to make removal quick and easy, where they are perfect for use on high volume assembly line components. ACE ALLOYS also offer these Alloy Steel Valves in different sizes, shapes and designs as per customers’ specifications at affordable rates.


Call +91-22-6743 7444 / 6743 8222 OR Email us at

acealloysllp@gmail.com for quick response


Needle Valves

Steel Needle Valves

Using the ability of making innovation in product, we Ace Alloys LLP. are also manufacturing a wide array of Steel Needle Valve. Our complete range is fabricated as per international norms and designs. We are offering them in different sizes as per capacities. Our expertise lies in offering a wide range of needle valves including Stainless Steel Needle Valves, Screwed Bonnet Needle Valve, Forged Body Needle Valve, Union Bonnet Needle Valve, Female Needle Valves, Male Needle Valves, Female Male Needle Valves and Tube End Needle Valves.

Metal Needle Valve MM offered can be made available in differ finish specifications to choose from and provide for dependable usage support in different industrial applications.


Types of Stainless Steel, Nickel Alloy Needle Valves

Female Needle Valves NPT (Female) X NPT (Female)
Male Needle Valves NPT( Male ) X NPT( Male)
Female Male Needle Valves / NPT( Male ) X NPT( Female ) NPT( Male ) X NPT( Female ) : Angular
Tube End Needle Valves Tube End X Tube End

Needle Valves with tube to tube end connection are available in below types & sizes

Needle Valve Tube to Tube End W.P.- BAR Series Sizes for Threads Types of Threads Available
6 MM to 15 MM OD 250 Light 6 MM to 15 MM Metric Threads both end
18 MM to 22 MM OD 160 Light 18 MM to 22 MM Metric Threads both end
28 MM to 42 MM OD 100 Light 28 MM to 42 MM Metric Threads both end
6 MM to 12 MM OD 630 Heavy 6 MM to 12 MM Metric Threads both end
14 MM to 25 MM OD 400 Heavy 14 MM to 25 MM Metric Threads both end
30 MM to 38 MM OD 250 Heavy 30 MM to 38 MM Metric Threads both end

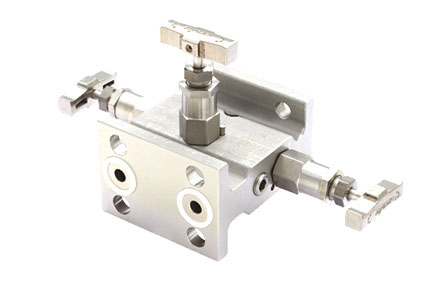

Manifold Valves

Owing to our rich industrial knowledge, we are keenly successful bin presenting 5 Way Steel Manifolds Valves. In accordance with the expansions taking place in this industry, these are made at par with the ethics. Also, their precise finish makes these highly valued and commended in the market.

We offers a variety of precision engineered manifold valves in 2, 3, and 5-valve Manifolds in Direct and Remote Mount styles with vent configurations to meet most flow, pressure and level measurement application requirements. We work extensively with a large proportion of its clients in customising designs and configurations. We are well equipped to reproduce any “special” valve manifold manufactured in the past. We will also work with any client in tailoring and producing a precision product with any number of valves


Types of Stainless Steel, Nickel Alloy Manifold Valves

2 Valve Manifolds
Straight Type Tee Type
H Type
3 Valve Manifolds
Straight Type Tee Type
H Type
5 Valve Manifolds
Straight Type Tee Type
H Type
Monoflange Valves

Ball Valves

Steel Ball Valves

We Ace Alloys are engaged in offering our clients a high quality range of Steel Forged Steel Ball Valves. Designed and manufactured with high precision using high quality raw material, this valve is widely used in various industries. This valve is available in different specifications at industry leading price as per the requirements of clients.

This product will be avilable in between the range of ruppe 150 to 3000 and all are prices are subject to chnaged as per the requiremnt and product specification. The offered range of precisely engineered ball valves is extensively used in petrochemical, textile and pharmaceutical industries. Owing to their compact structure, strong construction, corrosion resistance and high performance, these ball valves are highly appreciated in the market.


Specifiaction of Stainless Steel, Nickel Alloy High Pressure Ball Valves

High Pressure Ball Valve
NO DESCRIPTION QTY MATERIAL
1 BODY 1 SS 316
2 END CONNECTOR 2 SS 316
3 BALL 1 SS 316
4 STEM 1 SS 316
5 BALL SEAT 2 PTFE
6 CONNECTOR SEAL 2 PTFE
7 STEM SEAL 2 PTFE
8 STEM WASHER 1 SS 316
9 LOCK PIN 1 SS 304
10 HANDLE 1 SS 304
11 SPRING WASHER 1 SS 304
12 LOCK NUT 1 SS 304

Specifiaction of Stainless Steel, Nickel Alloy High Pressure Ball Valves

Size 1/4" to 1"
End ports BSP, NPT, BSPT, Flange End, ODT
Max. Std. Pressure 6000 Psi (413 Bar)
Temperature Rating PTFE 450° F (232°C)
Grafoil 700° F (371° C)
Material SS 316, SS 304, C.S., Hastelloy, Monel
Ball Seat PTFE, Delrin
Panel mount option All valves are 100%
Factory tested prior to shipment.
