Lug Dual Plate Check Valves

Lug Dual Plate Check Valves Manufacturer

Stainless Steel Lug Dual Plate Check Valve Manufacturers, Carbon Steel Lug Dual Plate Check Valve Suppliers, Alloy Steel Lug Dual Plate Check Valve Exporters, Brass Lug Dual Plate Check Valve Providers

Industrial Lug Dual Plate Check Valves Manufacturer & Suppliers in India

ACE ALLOYS LLP is a professional Lug Dual Plate Check valves Manufacturer & Supplier in the country. We offer Lug Type Dual Plate Check Valve of sizes ranging from 40 mm to 500 mm. We design and manufacture Dual-Plate Lug Check Valves at our state of the art technologically efficient warehouses that use modern machinery. We pride ourselves in our ready to sale inventory that is ready to be shipped at a moments’ notice of all our clients.

Lug Dual Plate Check Valves
Lug Dual Plate Check Valves

We are one of the leading organizations, engaged in manufacturing and supplying excellent quality Alloy Steel Lug Dual Plate Check Valves which are known for their sturdiness and strength. Our Bronze Lug Dual Plate Check Valves is a non-return valve that is much stronger, lighter in terms of weight and smaller in size as compared to conventional swing lift check valve. Its design has distinct advantages over conventional swing check valve.

We manufacture Stainless Steel Lug Dual Plate Check Valves of different cracking points such as 0.35 bar and 4.5 bar among other on demand valves. We are also known for our Brass Lug Dual Plate Check Valves that meet the national and international standards, to suit the needs of our clients in various industries and sectors.

Our professional supervisors and highly skilled and talented work force help produce the Aluminium Lug Dual Plate Check Valves of highest quality and durability. They are the corner stone to our success. Contact us for products that meet the required industry lug dual plate check valves specification.

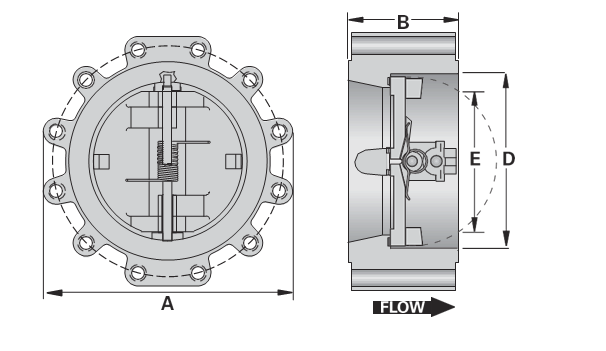

Dimensions of ANSI/ASME B16.10 Lug Dual Plate Check Valve

Lug Dual Plate Check Valves
SIZE DIMENSIONS STUD DETAILS

END FACING

EYE BOLT HOLE SIZE (1)
A B D E No. Diameter RF Stud Length
NPS DN in mm in mm in mm in mm in mm in mm in mm
2" 50 6.00 152 2.38 60 2.38 60 0.00 0 4 0.63 16 2.75 70 RF
21/2" 65 7.00 178 2.63 67 2.88 73 1.05 27 4 0.63 16 2.75 70 RF
3" 80 7.50 191 2.88 73 2.88 73 1.68 43 4 0.63 16 3.00 76 RF
4" 100 9.00 229 2.88 73 4.50 114 3.37 85 8 0.63 16 3.00 76 RF
5" 125 10.00 254 3.38 86 5.56 141 4.42 112 8 0.75 19 3.25 83 RF
6" 150 11.00 279 3.88 98 6.63 168 5.62 143 8 0.75 19 3.25 83 RF 0.50 13
8" 200 13.50 343 5.00 127 8.63 219 7.35 187 8 0.75 19 3.50 89 RF 0.50 13
10" 250 16.00 406 5.75 146 10.75 273 9.45 240 12 0.88 22 3.75 95 RF 0.50 13
12" 300 19.00 483 7.13 181 12.75 324 11.15 283 12 0.88 22 3.75 95 RF 0.75 19
14" 350 21.00 533 7.25 184 14.00 356 12.23 311 12 1.00 25 4.25 108 RF 0.75 19
16" 400 23.50 597 1.50 38 16.00 406 13.99 355 16 1.00 25 4.25 108 RF 1.00 25
18" 450 25.00 635 8.00 203 18.00 457 15.95 405 16 1.13 29 4.75 121 RF 1.00 25
20" 500 27.50 699 8.63 219 20.00 508 17.78 452 20 1.13 29 5.00 127 RF 1.00 25
24" 600 32.00 813 8.75 222 24.00 610 21.29 541 20 1.25 32 5.50 140 RF 1.00 25
26" 650 34.25 870 14.00 356 26.00 660 21.96 558 24 1.25 32 6.50 165 RF 1.00 25
28" 700 36.50 927 15.00 381 28.00 711 22.06 560 28 1.25 32 6.50 165 RF 1.00 25
30" 750 38.75 984 12.00 305 30.00 762 27.80 706 28 1.25 32 6.75 171 RF 1.00 25
32" 800 41.75 1060 14.00 356 32.00 813 29.25 743 28 1.50 38 7.50 191 RF 1.00 25
36" 900 46.00 1168 14.50 368 36.00 914 33.40 848 32 1.50 38 8.00 203 RF 1.00 25
40" 1000 50.75 1289 17.00 432 40.00 1016 37.56 954 36 1.50 38 8.00 203 RF 1.50 38
42" 1050 53.00 1346 17.00 432 42.00 1067 39.20 996 36 1.50 38 8.25 210 RF 1.50 38
48" 1200 59.50 1511 20.63 524 48.00 1219 43.06 1094 44 1.50 38 8.75 222 RF 1.50 38
54" 1350 66.25 1683 23.25 591 54.00 1372 50.44 1281 44 1.75 44 9.75 248 RF 1.50 38
60" 1500 73.00 1854 26.00 660 60.00 1524 55.68 1414 52 1.75 44 10.25 260 RF 2.00 51
SIZE DIMENSIONS STUD DETAILS

END FACING

EYE BOLT HOLE SIZE (1)
A B D E No. Diameter RFStud Length
NPS DN in mm in mm in mm in mm in mm in mm in mm
2" 50 6.50 165 2.38 60 2.38 60 0.00 0 8 0.63 16 2.75 70 RF
21/2" 65 7.50 191 2.63 67 2.88 73 1.19 30 8 0.75 19 3.25 83 RF
3" 80 8.25 210 2.88 73 2.91 74 1.90 48 8 0.75 19 3.50 89 RF
4" 100 10.00 254 2.88 73 4.50 114 3.37 85 8 0.75 19 3.50 89 RF
5" 125 11.00 279 3.38 86 5.56 141 4.42 112 8 0.75 19 3.75 95 RF
6" 150 12.50 318 3.88 98 6.63 168 5.47 139 12 0.75 19 3.75 95 RF 0.50 13
8" 200 15.00 381 5.00 127 8.63 219 7.35 187 12 0.88 22 4.25 108 RF 0.50 13
10" 250 17.50 445 5.75 146 10.75 273 9.45 240 16 1.00 25 4.75 121 RF 0.50 13
12" 300 20.50 521 7.13 181 12.75 324 11.15 283 16 1.13 29 5.25 133 RF 0.75 19
14" 350 23.00 584 8.75 222 14.00 356 12.27 312 20 1.13 29 5.25 133 RF 0.75 19
16" 400 25.50 648 9.13 232 16.00 406 14.13 359 20 1.25 32 5.75 146 RF 1.00 25
18" 450 28.00 711 10.38 264 18.00 457 16.44 418 24 1.25 32 6.00 152 RF 1.00 25
20" 500 30.50 775 11.50 292 20.00 508 17.81 452 24 1.25 32 6.00 152 RF 1.00 25
24" 600 36.00 914 12.50 318 24.00 610 21.87 555 24 1.50 38 7.00 178 RF 1.00 25
26" 650 38.25 972 14.00 356 26.00 660 22.85 580 28 1.63 41 7.75 197 RF 1.00 25
28" 700 40.75 1035 15.00 381 28.00 711 24.41 620 28 1.63 41 8.25 210 RF 1.00 25
30" 750 43.00 1092 14.50 368 30.00 762 27.69 703 28 1.75 44 8.75 222 RF 1.00 25
32" 800 45.25 1149 16.00 406 32.00 813 28.93 735 28 1.88 48 9.25 235 RF 1.00 25
36" 900 50.00 1270 19.00 483 36.00 914 32.41 823 32 2.00 51 9.75 248 RF 1.00 25
40" 1000 48.75 1238 21.50 546 36.00 914 36.29 922 32 1.63 41 9.25 235 RF 1.50 38
42" 1050 50.75 1289 22.38 568 40.00 1016 35.99 914 32 1.63 41 9.50 241 RF 1.50 38
48" 1200 57.75 1467 24.75 629 44.00 1118 43.68 1109 32 1.88 48 10.50 267 RF 1.50 38
54" 1350 65.25 1657 28.25 718 50.00 1270 48.65 1236 28 2.25 57 12.25 311 RF 1.50 38
60" 1500 71.25 1810 33.00 838 56.00 1422 48.00 1219 32 2.25 57 12.75 324 RF 2.00 51
SIZE DIMENSIONS STUD DETAILS

END FACING

EYE BOLT HOLE SIZE (1)
A B D E No. Diameter RFStud Length RTJStud Length
NPS DN in mm in mm in mm in mm in mm in mm in mm in mm
2" 50 6.50 165 2.38 60 2.38 60 0.00 0 8 0.63 16 3.25 83 3.75 95 RF/RTJ#23
3" 80 8.25 210 2.88 73 2.91 74 2.14 54 8 0.75 19 3.75 95 4.25 108 RF/RTJ#31
4" 100 10.75 273 3.13 79 4.50 114 3.54 90 8 0.88 22 4.25 108 4.75 121 RF/RTJ#37
6" 150 14.00 356 5.38 137 6.63 168 5.22 133 12 1.00 25 5.00 127 5.50 140 RF/RTJ#45 0.50 13
8" 200 16.50 419 6.50 165 8.63 219 6.98 177 12 1.13 29 5.75 146 6.00 152 RF/RTJ#49 0.50 13
10" 250 20.00 508 8.38 213 10.75 273 9.08 231 16 1.25 32 6.25 159 6.75 171 RF/RTJ#53 0.50 13
12" 300 22.00 559 9.00 229 12.75 324 11.32 288 20 1.25 32 6.50 165 6.75 171 RF/RTJ#57 0.75 19
14" 350 23.75 603 10.75 273 14.00 356 12.46 316 20 1.38 35 6.75 171 7.25 184 RF/RTJ#61 0.75 19
16" 400 27.00 686 12.00 305 16.00 406 12.89 327 20 1.50 38 7.50 191 7.75 197 RF/RTJ#65 1.00 25
18" 450 29.25 743 14.25 362 18.00 457 14.52 369 20 1.63 41 8.00 203 8.50 216 RF/RTJ#69 1.00 25
20" 500 32.00 813 14.50 368 20.00 508 17.06 433 24 1.63 41 8.25 210 9.00 229 RF/RTJ#73 1.00 25
24" 600 37.00 940 17.50 445 24.00 610 20.18 513 24 1.63 41 8.75 222 9.50 241 RF/RTJ#77 1.00 25
26" 650 40.00 1016 18.00 457 26.00 660 21.74 552 28 1.88 48 9.50 241 10.50 267 RF/RTJ#93 1.00 25
28" 700 42.25 1073 19.00 483 28.00 711 23.89 607 28 2.00 51 10.00 254 11.00 279 RF/RTJ#94 1.00 25
30" 750 44.50 1130 19.88 505 30.00 762 27.88 708 28 2.00 51 10.25 260 11.25 286 RF/RTJ#95 1.00 25
32" 800 47.00 1194 21.00 533 32.00 813 27.92 709 28 2.25 57 11.00 279 12.00 305 RF/RTJ#96 1.00 25
36" 900 51.75 1314 25.00 635 36.00 914 31.47 799 28 2.50 64 11.75 298 13.00 330 RF/RTJ#98 1.00 25
40" 1000 52.00 1321 26.00 660 36.00 914 33.38 848 32 2.25 57 12.50 318 RF 1.50 38
42" 1050 55.25 1403 27.63 702 38.00 965 36.78 934 28 2.50 64 13.50 343 RF 1.50 38
48" 1200 62.75 1594 31.00 787 42.00 1067 42.25 1073 32 2.75 70 15.00 381 RF 1.50 38
54" 1350 70.00 1778 35.00 889 48.00 1219 48.34 1228 32 3.00 76 16.50 419 RF 2.00 51
60" 1500 78.50 1994 39.00 991 54.00 1372 45.00 1143 28 3.50 89 18.75 476 RF 2.50 64

Types of ANSI/ASME B16.10 Lug Dual Plate Check Valves

  • Lug Dual Plate Check valves Manufacturer
  • Lug Dual Plate Check valves Supplier
  • Lug Type Dual Plate Check Valve
  • Stainless Steel Lug Dual Plate Check Valves
  • Alloy Steel Lug Dual Plate Check Valves
  • Aluminium Lug Dual Plate Check Valves
  • Brass Lug Dual Plate Check Valves
  • Bronze Lug Dual Plate Check Valves
  • Carbon Steel Lug Dual Plate Check Valves
  • Martensitic Steels Lug Dual Plate Check Valves
  • Nickel Alloys Lug Dual Plate Check Valve
  • Hastelloy Lug Dual Plate Check Valves
  • Inconel Lug Dual Plate Check Valves
  • Titanium Alloy Steel Lug Dual Plate Check Valves
  • Low Temperature Carbon Steel Lug Dual Plate Check Valves
  • Austenitic Stainless Steel Lug Dual Plate Check Valves
  • Super Duplex Stainless Steels Lug Dual Plate Check Valve
  • Duplex Stainless Steels Lug Dual Plate Check Valve
  • Nickel Aluminum Bronze Lug Dual Plate Check Valve
  • 304 SS Lug Dual Plate Check Valves
  • 316 SS Lug Dual Plate Check Valves

For Lug Dual Plate Check Valves price list as on :

Request the latest Lug Dual Plate Check Valves Price List. Use the contact button below for Lug Dual Plate Check Valves Ready stock information and updated price list.

Other Material Grades of ANSI/ASME B16.10 Lug Dual Plate Check Valves

DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
Carbon Steel K30504 A105 A216 WCB A105
Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
High Yield Steel K03014 A694 F60 - A694 F60
3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
5 Chrome, 1/2 Moly K41545 A182 F5 A217 C5 A182 F5
1 1/4 Chrome, 1/2 Moly K11597 A182 F11 A217 WC6 A182 F11
2 1/4 Chrome, 1 Moly K21590 A182 F22 A217 WC9 A182 F22
9 Chrome, 1 Moly K90941 A182 F9 A217 WC6 A182 F9
13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
304 S30400 A182 F304 A351 CF8 A276 or A479 304
304L S30403 A182 F304L A351 CF3 A276 or A479 304L
316 S31600 A182 F316 A351 CF8M A276 or A479 316
316L S31603 A182 F316L A351 CF3M A276 or A479 316L
317L S31703 A182 F317L A351 CG8M A276 or A479 317L
321 S32100 A182 F321 - A276 or A479 321
347 S34700 A182 F347 A351 CF8C A276 or A479 347
17-4PH S17400 A564 630 - -
Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
Alloy K500 N05500 - - B865 N05500
Alloy 800 N08800 B564 N08810 - B408 N08800
Alloy 825 N08825 - - B425 N08825
Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
Alloy C N10002 - A494 CW6M -
Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276
22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
904L N08904 B625 N08904 - B649 N08904
Titanium R50400 B381 F2 B367 C2 B348 Gr 2

ANSI/ASME B16.10 Lug Dual Plate Check Valves Application

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry

ANSI/ASME B16.10 Lug Dual Plate Check Valves Manufacturer & Supplier
