PFA Lined Valves

PFA Lined Valves Manufacturer & Supplier

Stainless Steel PFA Lined Valves Manufacturers, Carbon Steel PFA Lined Valves Suppliers, Alloy Steel PFA Lined Valve Exporters, Brass PFA Lined Valves Providers

Industrial PFA Lined Valves Manufacturer & Supplier in India

ACE ALLOY LLP is an eminent PFA Lined Valves Supplier and manufacturer based in India. We maintain a very large PFA lined valves stock and are well known in the industry for different PFA Lined Valves types which are supplied to a wide base of clients across a number of industries.

PFA Lined Valves
PFA Lined Valves

We assure you that all our products meet the required PFA Lined Valves Specification. We are renowned suppliers of PFA Lined Ball Valve in size range from1/2" (DN15) to 6"(DN 150) with lining thickness of minimum 3.0 mm / 5.0 mm overall. PFA Lined Plug Valve is designed according to the modular assembly principle. We supply PFA Lined Diaphragm Valve which is primarily used in the fields of water and waste water treatment, mining, the mineral, paper and cellulose processing industry, the chemical industry or at power stations and steelworks.

We are renowned for our PFA Lined Check Valve and PFA Lined Butterfly Valve that are in compliance with the national and international standards.  Our quality controllers strictly supervise the fabrication of Alloy Steel PFA Lined Valves such as Bronze PFA Lined Valves and Brass PFA Lined Valves that are designed based on varied parameters of quality before the delivery of these products to the desired locations. We also deliver Stainless Steel PFA Lined Valves and Aluminium PFA Lined Valves in varying sizes and thickness.

We pride ourselves in offering a comprehensive that we offer at a very reasonable and commendable price list to all our esteemed clients. Call or email us to know more and help us serve you better.

PFA Lined Ball Valves, PFA Lined Plug Valves, PFA Lined Diaphragm Valve, PFA Lined Butterfly Valve, PFA Lined Check Valves, PFA Lined Wafer Type Swing Check Valve Dealer & Wholesaler

ANSI/ASME B16.10 PFA Lined Valves Specifications:

Size 25 NB to 200 NB
Service FEP/PFA (FEP) Max -160 C
Temp FEP/PFA' (PFA) Max -205°C
Thickness 3.0 to 3.5 mm Mini. Over all wetted parts
Material Ductile Iron, CS
Standard API-599, BS-5158, BS-5351, BS-5159, BS-5155
Spark Test 15 k.v. D.C
Type Butterfly, Plug, Ball, Check & Diphragm Valves, FEP, PFA
Ends Wafer & Lugged End Type for Butterfly & Flanged End

Dimensions of ANSI/ASME B16.10 PFA Lined Valve

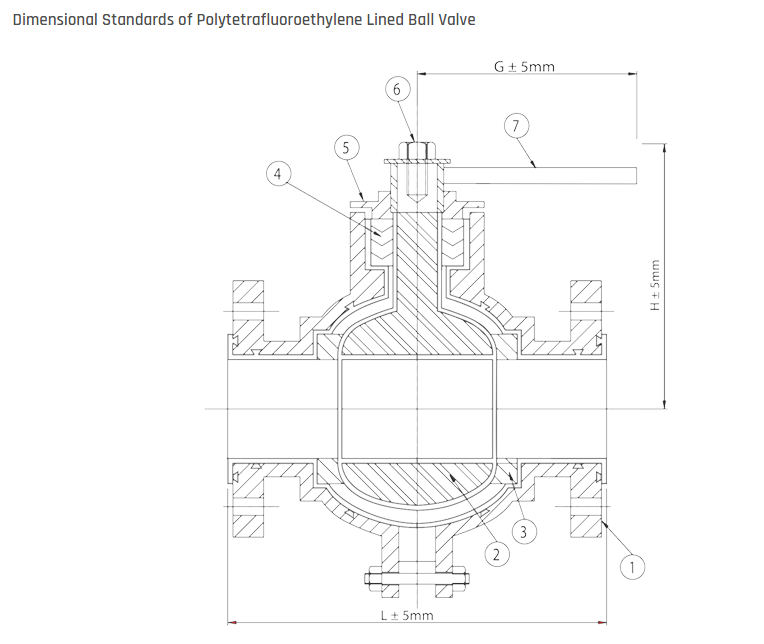

PFA Ball Valve
SIZE L G H WEIGHT
15 108 134 85 2.15 Kg
20 117 133 85 3.10 Kg
25 127 158 95 3.75 Kg
40 165 228 120 6.75 Kg
50 178 228 135 9.75 Kg
80 203 325 165 19.50 Kg
100 229 377 180 31.00 Kg
150 267 548 250 56.00 Kg

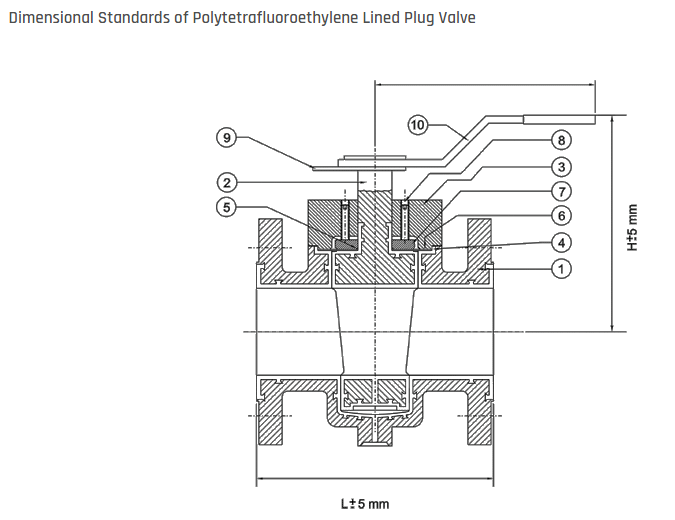

PFA Lined Plug Valves
SIZE L G H
15 108 158 95
20 117 228 100
25 127 228 105
40 165 325 130
50 178 325 140
80 203 548 170
100 228 548 217
150 268 575 300

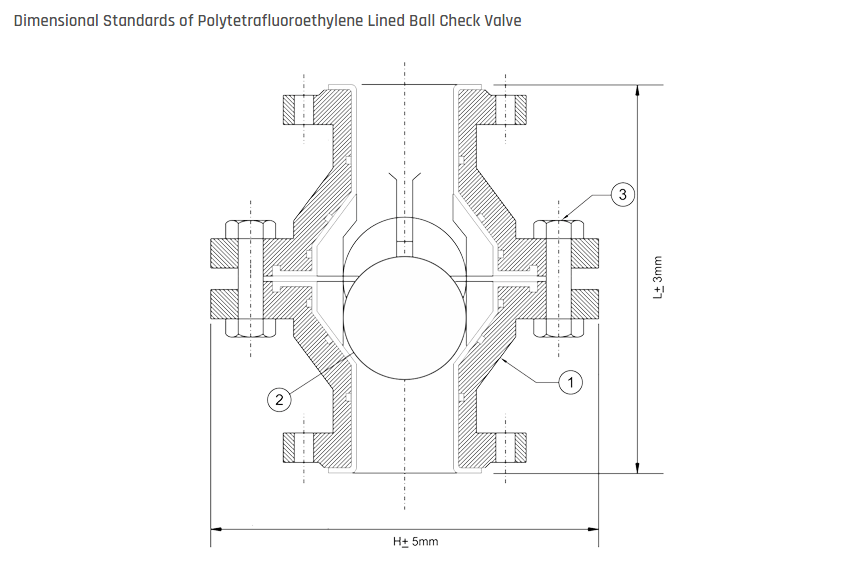

PFA Lined Ball Check Valves
SIZE L H
15 130 105
20 150 115
25 127 125
40 165 160
50 178 175
80 203 240
100 229 270
150 400 330
200 600 381

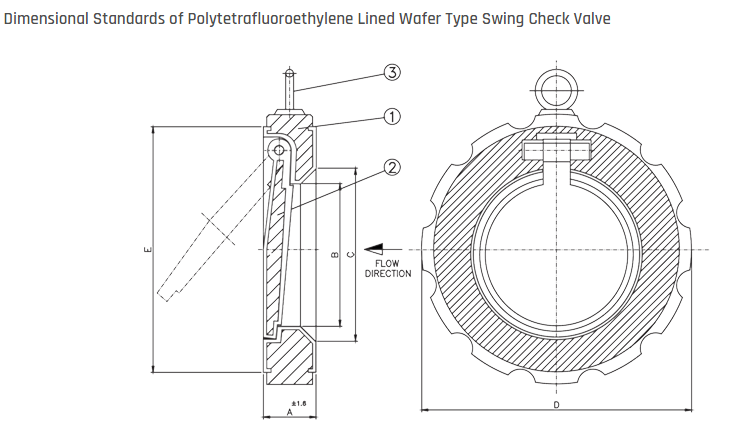

PFA Lined Wafer Type Swing Check Valve
NB A B C D E
40 30 20 35 95 70
50 35 30 52 110 90
80 46 42 64 142 124
100 52 65 80 180 152
150 56 111 128 233 207
200 60 133 175 295 260
250 68 184 224 348 317
300 78 232 272 398 367

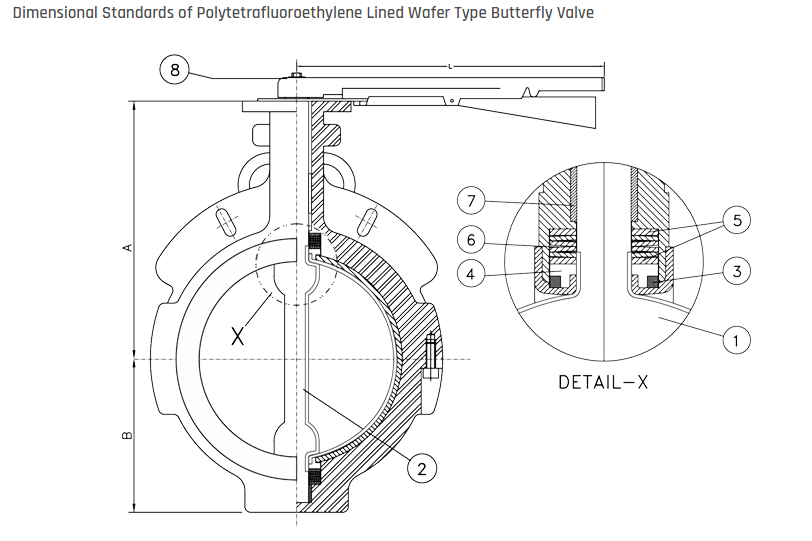

PFA Lined Wafer Type Butterfly Valve
SIZE F/F A B L
50 43 100 70 265
65 46 114 70 265
80 46 120 80 265
100 52 158 110 350
125 56 175 125 350
150 56 190 130 430
200 60 220 160 430
250 68 250 185 G.Box
300 78 285 215 G.Box
350 78 325 285 G.Box

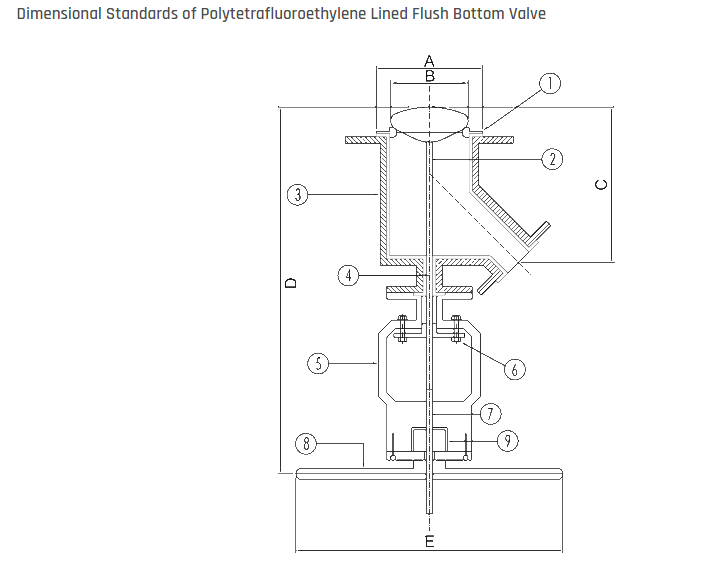

PFA Lined Flush Bottom Valve
SIZE A B C E E
50 X 25 90 40 100 220 150
80 X 50 127 70 160 430 200
100 X 80 160 88 220 500 200
150 X 100 210 140 330 600 250

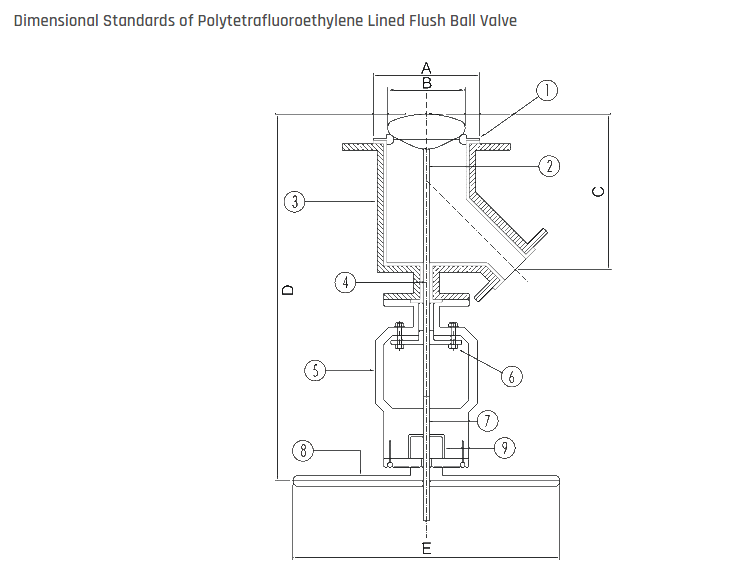

PFA Lined Flush Ball Valve
SIZE A B C E E
50 X 25 90 40 100 220 150
80 X 50 127 70 160 430 200
100 X 80 160 88 220 500 200
150 X 100 210 140 330 600 250

Types of ANSI/ASME B16.10 PFA Lined Valves

  • PFA Lined Valves Supplier
  • PFA Lined Valves Manufacturer
  • PFA Lined Valves Stock
  • PFA Lined Ball Valve
  • PFA Lined Plug Valve
  • PFA Lined Diaphragm Valve
  • PFA Lined Butterfly Valve
  • PFA Lined Check Valve
  • 304 SS PFA Lined Valves
  • Stainless Steel PFA Lined Valves
  • Alloy Steel PFA Lined Valves
  • Aluminium PFA Lined Valves
  • Brass PFA Lined Valves
  • Bronze PFA Lined Valves
  • Carbon Steel PFA Lined Valves
  • Hastelloy PFA Lined Valves
  • Inconel PFA Lined Valves
  • 316 SS PFA Lined Valves
  • Low Temperature Carbon Steel PFA Lined Valves
  • Martensitic Steels PFA Lined Valves
  • Austenitic Stainless Steel PFA Lined Valves
  • Duplex Stainless Steels PFA Lined Valve
  • Super Duplex Stainless Steels PFA Lined Valve
  • Nickel Alloys PFA Lined Valve
  • Nickel Aluminum Bronze PFA Lined Valve
  • Titanium Alloy Steel PFA Lined Valves

For PFA Lined Valves price list as on :

Request the latest PFA Lined Valves Price List. Use the contact button below for PFA Lined Valves Ready stock information and updated price list.

Other Material Grades of ANSI/ASME B16.10 PFA Lined Valves

DESCRIPTION UNS GRADE FORGING CASTING BARSTOCK
Carbon Steel K30504 A105 A216 WCB A105
Low Temp Carbon K03011 A350 LF2 A352 LCB A350 LF2
High Yield Steel K03014 A694 F60 - A694 F60
3 1/2 Nickel Steel K32025 A350 LF3 A352 LC3 A350 LF3
5 Chrome, 1/2 Moly K41545 A182 F5 A217 C5 A182 F5
1 1/4 Chrome, 1/2 Moly K11597 A182 F11 A217 WC6 A182 F11
2 1/4 Chrome, 1 Moly K21590 A182 F22 A217 WC9 A182 F22
9 Chrome, 1 Moly K90941 A182 F9 A217 WC6 A182 F9
13 Chrome S41000 A182 F6A A351 CA15 A276 or A479 410
304 S30400 A182 F304 A351 CF8 A276 or A479 304
304L S30403 A182 F304L A351 CF3 A276 or A479 304L
316 S31600 A182 F316 A351 CF8M A276 or A479 316
316L S31603 A182 F316L A351 CF3M A276 or A479 316L
317L S31703 A182 F317L A351 CG8M A276 or A479 317L
321 S32100 A182 F321 - A276 or A479 321
347 S34700 A182 F347 A351 CF8C A276 or A479 347
17-4PH S17400 A564 630 - -
Alloy 400 N04400 B564 N04400 A494 M35-1 B164 N04400
Alloy K500 N05500 - - B865 N05500
Alloy 800 N08800 B564 N08810 - B408 N08800
Alloy 825 N08825 - - B425 N08825
Alloy 600 N06600 B564 N06600 A494 CY40 B166 N06600
Alloy 625 N06625 B564 N06625 A494 CW 6MC B446 N06625
Alloy B2 N10665 B564 N10665 A494 N 12MV B335 N10665
Alloy C N10002 - A494 CW6M -
Alloy C22 N06022 B574 N06022 A494 CX2MW B574 N06022
Alloy C276 N10276 B564 N10276 A494 CW12 MW B574 N10276
22% Duplex S31803 A182 F51 A890 Gr 4A A276 or A479 S31803
25% Duplex S32750 or 32760 A182 F53 A890 Gr 6A A276 or A479 S32750 or 60
254SMO S31254 A182 F44 A351 CK3MCuN A182 F44
904L N08904 B625 N08904 - B649 N08904
Titanium R50400 B381 F2 B367 C2 B348 Gr 2

ANSI/ASME B16.10 PFA Lined Valves Application

Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing
Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment
Sea Water Equipment Heat Exchangers Condensers Pulp & Paper Industry
